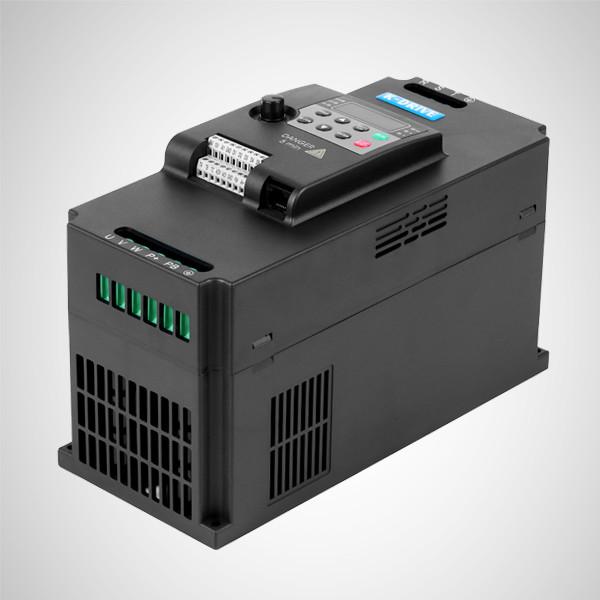

KD100 Vector Variable Frequency Inverter AC Drive
Water pumping controller 2.2kw 220v for single phase pump dc-ac
power
Key Features:
1, Support single phase/three phase 220V, and three phase 380V
solar water pump inverter, power from 0.75kW to 250KW
2, Simply connect the photovoltaic panel to the inverter, no need
to set any parameters.
3, It has protection functions such as overvoltage protection,
overcurrent protection, dry runing protection, full water
protection.
4, Advanced MPPT algorithm. Ensure solar power tracking efficiency
can reach 99.02%
5, Supports optional GPRS module, which can realize remote
monitoring function of computer webpage and mobile APP
6, Support PV DC input and grid AC input at same time, which can
meet 24 hours of no care work
7, Support LCD keypad, it is easier to monitor system situation.
8, Support PMSM pump, and IP20 or IP65 level.
Advantages
Thanks to sophisticated engineers, scientific producing
workmanship, rigorous quality control systems and management team,
K-Drive frequency inverters are equipped with advanced features,
some of which are listed as below:
01. Starting torque: 180% at 0.5Hz (V/f pattern, SVC pattern);
02. Speed adjustable range: 1: 100 (V/f pattern, SVC pattern);
03. Speed accuracy: +/-0.5% (V/f pattern), +/-0.2% (SVC pattern);
04. Over load capability: 150% 1minute, 180% 10seconds;
05. Abundant frequency command sources;
06. Diverse input and output terminals;
07. Ambient temperature: -10°C~50°C;
08. High precise torque constraint, process PID control, multi-speed
control, contracting brake control, field weakening control, all
sides protection, etc;
09. Online and offline auto-tuning of motor parameters can both
performed;
10. Extremely short-time acceleration can be performed without any
trip, such as 0.1s or 0s from 0Hz to 50Hz;
| Mains Supply (L1/L,L2,L3/N) | |
|---|
| Supply voltage | 208-240V±10% 380-480V±10% |
|---|
| Power source frequency | 50/60Hz±5% |
|---|
| Displacement power factor (cos φ) | (> 0.98) |
|---|
| Output Data (U, V, W) | |
|---|
| Output voltage / frequency | 0-100% of supply voltage / 0.00-600.00 Hz or customized |
|---|
| Ramp time | 0.01-60000 S |
|---|
Note:150% current can be provided for 1 minute, 180% for 10 seconds.
Higher overload rating is achieved by oversizing the drive.
| Digital Input | |
|---|
| Programmable digital inputs | 5 |
|---|
| Logic | NPN or PNP |
|---|
| Voltage level | 22 - 26V |
|---|
| Analog Input | |
|---|
| Analog inputs | 2 |
|---|
| Modes | Voltage or current |
|---|
| Level | 0 to +10V, 0/4 to 20 mA (scalable) |
|---|
| Automatic correction | YES |
|---|
| Relay Output |
|---|
| Programmable relay outputs | 1 |
|---|
| RA - RB / TA - TB | Normally close |
|---|
| RA - RC / TA - TC | Normally open |
|---|
| Contact capacitance | 250VAC/3A, 30VDC/3A |
|---|
| Terminal 485 Interface |
|---|
| 485+ / 485- | Rate: 4800/9600/19200/38400/57600/115200 bps Max. distance: 500m |
|---|
| GND | Isolated from COM |
|---|
| Ambient | |
|---|
| Vibration | Less than 5.9 m/s² (0.6g) |
|---|
| Humidity | Relative humidity 5% - 95 %. No condensation |
|---|
| Corrosive environment | 3C3 |
|---|
| Ambient temperature | -10 ºC - 50 ºC |
|---|
| Altitude | 0 - 2,000 m |
|---|
| Rated output current derated 1% every 100 m above 1,000 m |
|---|
| Storage temperature | -40 - +70 ºC |
|---|
| Efficiency | Efficiency At rated amps: ≥93% |
|---|
| IP grade | IP20 |
|---|
| Cooling method | Forced air cooling |
|---|
| Fieldbus Communication |
|---|
| Modbus RTU, Modbus ASCII | Built-in |
|---|
Applications
KD100 drives are economical series at K-Drive. They offer V/f
control, including voltage and frequency separated control,
adaptable to various industrial applications if sensor-less vector
control is not required, including printing machines, packaging
machines, pumps, fans and blowers, etc.
 |  |  |
| Conveyors | Centrifuges | Food processing Machinery |
 |  |  |
| Pumps | Fans | More … |
