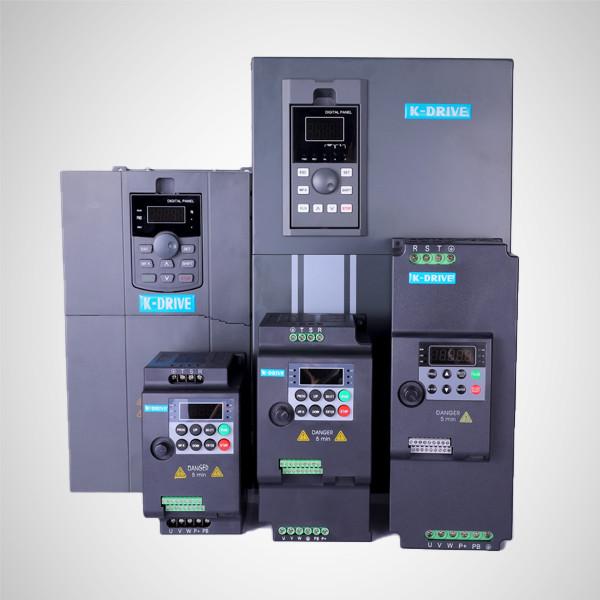

KD100 Vector Variable Frequency Inverter AC Drive
Who We Are
Shenzhen K-Easy Automation Co.,Limited. a Professional AC drive, Frequency Inverter, VFD, enterprise
which has been specializing in Researching, Manufacturing and
Trading high, medium and low voltage frequency inverter, providing
our clients with integrated system solutions. We have professional
R&D and devoted management team with more than 20 years’
experience of theoretical research, product development and quality
management. We adopt SPWM, sensorless vector control and vector and
torque control technology in our VFD series inverters, which has
reached the international advanced standard. The products can
directly replace or to be equivalent of Europe and the United
States, Japan and other brands, providing customers with a powerful
technical support.
We have achieved popularity and qualification in VFD industry.
Quality is the life of enterprise.
Brand: K-Drive
Certificate: CE, RoHS
| Model | Power Rating | Input Voltage | Output FREQ | Type |
|---|
| KD100 series | 0.4kW-400kW | 208-240V / 380-480V ±10% | 0.00-600.00Hz | DC/AC to AC inverters |
Advantages
Thanks to sophisticated engineers, scientific producing
workmanship, rigorous quality control systems and management team,
K-Drive frequency inverters are equipped with advanced features,
some of which are listed as below:
01. Starting torque: 180% at 0.5Hz (V/f pattern, SVC pattern);
02. Speed adjustable range: 1: 100 (V/f pattern, SVC pattern);
03. Speed accuracy: +/-0.5% (V/f pattern), +/-0.2% (SVC pattern);
04. Over load capability: 150% 1minute, 180% 10seconds;
05. Abundant frequency command sources;
06. Diverse input and output terminals;
07. Ambient temperature: -10°C~50°C;
08. High precise torque constraint, process PID control, multi-speed
control, contracting brake control, field weakening control, all
sides protection, etc;
09. Online and offline auto-tuning of motor parameters can both
performed;
10. Extremely short-time acceleration can be performed without any
trip, such as 0.1s or 0s from 0Hz to 50Hz;
| Mains Supply (L1/L,L2,L3/N) | |
|---|
| Supply voltage | 208-240V±10% 380-480V±10% |
|---|
| Power source frequency | 50/60Hz±5% |
|---|
| Displacement power factor (cos φ) | (> 0.98) |
|---|
| Output Data (U, V, W) | |
|---|
| Output voltage / frequency | 0-100% of supply voltage / 0.00-600.00 Hz or customized |
|---|
| Ramp time | 0.01-60000 S |
|---|
Note:150% current can be provided for 1 minute, 180% for 10 seconds.
Higher overload rating is achieved by oversizing the drive.
| Digital Input | |
|---|
| Programmable digital inputs | 5 |
|---|
| Logic | NPN or PNP |
|---|
| Voltage level | 22 - 26V |
|---|
| Analog Input | |
|---|
| Analog inputs | 2 |
|---|
| Modes | Voltage or current |
|---|
| Level | 0 to +10V, 0/4 to 20 mA (scalable) |
|---|
| Automatic correction | YES |
|---|
| Relay Output |
|---|
| Programmable relay outputs | 1 |
|---|
| RA - RB / TA - TB | Normally close |
|---|
| RA - RC / TA - TC | Normally open |
|---|
| Contact capacitance | 250VAC/3A, 30VDC/3A |
|---|
| Terminal 485 Interface |
|---|
| 485+ / 485- | Rate: 4800/9600/19200/38400/57600/115200 bps Max. distance: 500m |
|---|
| GND | Isolated from COM |
|---|
| Ambient | |
|---|
| Vibration | Less than 5.9 m/s² (0.6g) |
|---|
| Humidity | Relative humidity 5% - 95 %. No condensation |
|---|
| Corrosive environment | 3C3 |
|---|
| Ambient temperature | -10 ºC - 50 ºC |
|---|
| Altitude | 0 - 2,000 m |
|---|
| Rated output current derated 1% every 100 m above 1,000 m |
|---|
| Storage temperature | -40 - +70 ºC |
|---|
| Efficiency | Efficiency At rated amps: ≥93% |
|---|
| IP grade | IP20 |
|---|
| Cooling method | Forced air cooling |
|---|
| Fieldbus Communication |
|---|
| Modbus RTU, Modbus ASCII | Built-in |
|---|

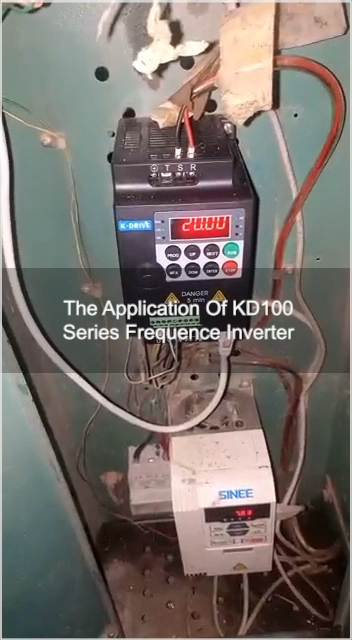

Applications
Please leave us an inquiry for more details of our frequency
inverters, like information of the model numbers, technical data,
applicable application, pricing, distributor policy, lead time
and/or customized functionality.
