KD100 Vector Variable Frequency Inverter AC Drive
0.4KW To 500KW Variable Frequency Inverters three phase 380V 50 to
60Hz input
KD100 sereis is a new-generation inverter developed independently
by Keasy Automation, featuring low noise, high performance and
multiple functions. It adopts the rotor field-oriented vector
control strategy to realize high-accuracy, wide-range speed and
torque control of the motor with high reliability, powerful
functions.
Products Feature
Support various motor's control mode
Support V/F control, Sensor-less vector control and Closed-loop
vector control.
Support several of encoder.
High starting torque character
150% starting torque at 0.5Hz(Open loop vector control without PG)
180% starting torque at 0Hz(Closed vector control with PG)
Support Various keyboard display
The screen of the KD100 series inverter is a two-line display,
which can display more than 30 states such as frequency and current
etc.
Advantages
Thanks to sophisticated engineers, scientific producing
workmanship, rigorous quality control systems and management team,
K-Drive frequency inverters are equipped with advanced features,
some of which are listed as below:
01. Starting torque: 180% at 0.5Hz (V/f pattern, SVC pattern);
02. Speed adjustable range: 1: 100 (V/f pattern, SVC pattern);
03. Speed accuracy: +/-0.5% (V/f pattern), +/-0.2% (SVC pattern);
04. Over load capability: 150% 1minute, 180% 10seconds;
05. Abundant frequency command sources;
06. Diverse input and output terminals;
07. Ambient temperature: -10°C~50°C;
08. High precise torque constraint, process PID control, multi-speed
control, contracting brake control, field weakening control, all
sides protection, etc;
09. Online and offline auto-tuning of motor parameters can both
performed;
10. Extremely short-time acceleration can be performed without any
trip, such as 0.1s or 0s from 0Hz to 50Hz;
| Mains Supply (L1/L,L2,L3/N) | |
|---|
| Supply voltage | 208-240V±10% 380-480V±10% |
|---|
| Power source frequency | 50/60Hz±5% |
|---|
| Displacement power factor (cos φ) | (> 0.98) |
|---|
| Output Data (U, V, W) | |
|---|
| Output voltage / frequency | 0-100% of supply voltage / 0.00-600.00 Hz or customized |
|---|
| Ramp time | 0.01-60000 S |
|---|
Note:150% current can be provided for 1 minute, 180% for 10 seconds.
Higher overload rating is achieved by oversizing the drive.
| Digital Input | |
|---|
| Programmable digital inputs | 5 |
|---|
| Logic | NPN or PNP |
|---|
| Voltage level | 22 - 26V |
|---|
| Analog Input | |
|---|
| Analog inputs | 2 |
|---|
| Modes | Voltage or current |
|---|
| Level | 0 to +10V, 0/4 to 20 mA (scalable) |
|---|
| Automatic correction | YES |
|---|
| Relay Output |
|---|
| Programmable relay outputs | 1 |
|---|
| RA - RB / TA - TB | Normally close |
|---|
| RA - RC / TA - TC | Normally open |
|---|
| Contact capacitance | 250VAC/3A, 30VDC/3A |
|---|
| Terminal 485 Interface |
|---|
| 485+ / 485- | Rate: 4800/9600/19200/38400/57600/115200 bps Max. distance: 500m |
|---|
| GND | Isolated from COM |
|---|
| Ambient | |
|---|
| Vibration | Less than 5.9 m/s² (0.6g) |
|---|
| Humidity | Relative humidity 5% - 95 %. No condensation |
|---|
| Corrosive environment | 3C3 |
|---|
| Ambient temperature | -10 ºC - 50 ºC |
|---|
| Altitude | 0 - 2,000 m |
|---|
| Rated output current derated 1% every 100 m above 1,000 m |
|---|
| Storage temperature | -40 - +70 ºC |
|---|
| Efficiency | Efficiency At rated amps: ≥93% |
|---|
| IP grade | IP20 |
|---|
| Cooling method | Forced air cooling |
|---|
| Fieldbus Communication |
|---|
| Modbus RTU, Modbus ASCII | Built-in |
|---|

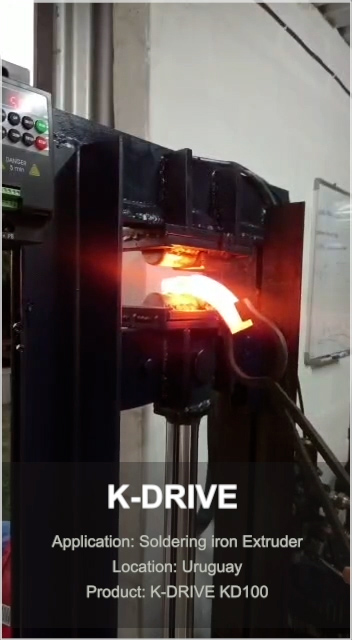

Applications
KD100 drives are economical series at K-Drive. They offer V/f
control, including voltage and frequency separated control,
adaptable to various industrial applications if sensor-less vector
control is not required, including printing machines, packaging
machines, pumps, fans and blowers, etc.
Why choose K-Drive variable frequency drive?
In the trend of advocating smart and simple industrial automation,
environmentally friendly products, value-added solutions, K-Drive,
as one of the world's leading drive manufacturers aggressively
investing in R&D, production, and continuous quality
improvement, is well positioned to provide its customers with
technology-driven, performance-outstanding products such as VFDs,
wind power converters, servo drives, HEV/EV drives, helping its
customers save energy and increase industrial productivity with
sustainability on the one hand, and enhancing their entire
value-chain quality, delivery, and services on the other hand.
Production
In production, rigorous quality control is implemented on
components, circuit boards, and the finished goods, assuring
products without defects.
K-Drive AC motor drives are able to replace AC drives and inverters
of the following brands: , LS, Toshiba, Siemens, Lenze, Yaskawa,
Mitsubishi, Delta, Hitachi, WEG and etc；
