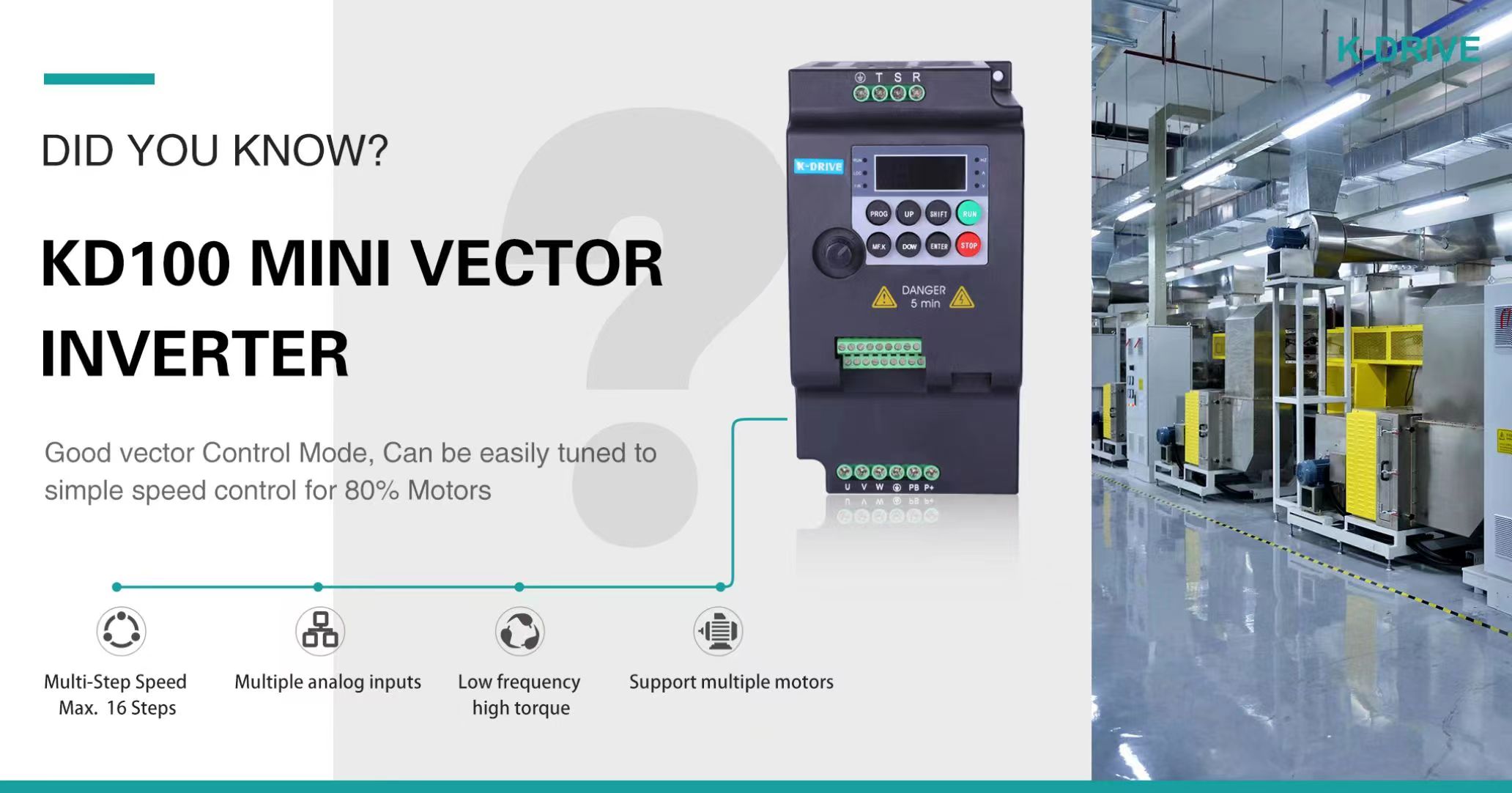

KD100 Vector Variable Frequency Inverter AC Drive
Single phase three phase 0.75kw 1.5kw 1hp 2hp 220v solar pump
inverter
K-EASY KD100 pump inverter Features:
1. Cover voltage levels 220V AC and 380V AC.
Support single-phase 220V and three-phase 220V/380V pumps,the power
from 0.4KW to 37KW.
2. Easy to use
The inverters automatically start or sleep only after being
connected to solar battery panels without any parameter setting.
3. Highly reliable for using multiple protective measures
Including PV over-voltage protection,PV polarity reverse
warning,and auto derating against over-temperture,which extend
product life.
4. Use advanced MPPT algorithms,ensuring that the solar power
tracking efficiency reaches 99%
5. Models of 2.2kW or lower can be configured with boost
module,meeting low-voltage work requirements.This reduces the use
of solar battery panels and therefore the cost.
6. it can implement auto switch between solar input and grid input
by configuring the boost or auto switching cabinet(meeting
lightning protection requirements),implementing 24-hour unattended
work.
Advantages
Thanks to sophisticated engineers, scientific producing
workmanship, rigorous quality control systems and management team,
K-Drive frequency inverters are equipped with advanced features,
some of which are listed as below:
01. Starting torque: 180% at 0.5Hz (V/f pattern, SVC pattern);
02. Speed adjustable range: 1: 100 (V/f pattern, SVC pattern);
03. Speed accuracy: +/-0.5% (V/f pattern), +/-0.2% (SVC pattern);
04. Over load capability: 150% 1minute, 180% 10seconds;
05. Abundant frequency command sources;
06. Diverse input and output terminals;
07. Ambient temperature: -10°C~50°C;
08. High precise torque constraint, process PID control, multi-speed
control, contracting brake control, field weakening control, all
sides protection, etc;
09. Online and offline auto-tuning of motor parameters can both
performed;
10. Extremely short-time acceleration can be performed without any
trip, such as 0.1s or 0s from 0Hz to 50Hz;
| Mains Supply (L1/L,L2,L3/N) | |
|---|
| Supply voltage | 208-240V±10% 380-480V±10% |
|---|
| Power source frequency | 50/60Hz±5% |
|---|
| Displacement power factor (cos φ) | (> 0.98) |
|---|
| Output Data (U, V, W) | |
|---|
| Output voltage / frequency | 0-100% of supply voltage / 0.00-600.00 Hz or customized |
|---|
| Ramp time | 0.01-60000 S |
|---|
Note:150% current can be provided for 1 minute, 180% for 10 seconds.
Higher overload rating is achieved by oversizing the drive.
| Digital Input | |
|---|
| Programmable digital inputs | 5 |
|---|
| Logic | NPN or PNP |
|---|
| Voltage level | 22 - 26V |
|---|
| Analog Input | |
|---|
| Analog inputs | 2 |
|---|
| Modes | Voltage or current |
|---|
| Level | 0 to +10V, 0/4 to 20 mA (scalable) |
|---|
| Automatic correction | YES |
|---|
| Relay Output |
|---|
| Programmable relay outputs | 1 |
|---|
| RA - RB / TA - TB | Normally close |
|---|
| RA - RC / TA - TC | Normally open |
|---|
| Contact capacitance | 250VAC/3A, 30VDC/3A |
|---|
| Terminal 485 Interface |
|---|
| 485+ / 485- | Rate: 4800/9600/19200/38400/57600/115200 bps Max. distance: 500m |
|---|
| GND | Isolated from COM |
|---|
| Ambient | |
|---|
| Vibration | Less than 5.9 m/s² (0.6g) |
|---|
| Humidity | Relative humidity 5% - 95 %. No condensation |
|---|
| Corrosive environment | 3C3 |
|---|
| Ambient temperature | -10 ºC - 50 ºC |
|---|
| Altitude | 0 - 2,000 m |
|---|
| Rated output current derated 1% every 100 m above 1,000 m |
|---|
| Storage temperature | -40 - +70 ºC |
|---|
| Efficiency | Efficiency At rated amps: ≥93% |
|---|
| IP grade | IP20 |
|---|
| Cooling method | Forced air cooling |
|---|
| Fieldbus Communication |
|---|
| Modbus RTU, Modbus ASCII | Built-in |
|---|
Applications
KD100 drives are economical series at K-Drive. They offer V/f
control, including voltage and frequency separated control,
adaptable to various industrial applications if sensor-less vector
control is not required, including printing machines, packaging
machines, pumps, fans and blowers, etc.
Production
In production, rigorous quality control is implemented on
components, circuit boards, and the finished goods, assuring
products without defects.
K-Drive VS Other brands
| Performance | Common brands | K-Drive |
|---|
| Applicable motors | Asynchronous motors | Asynchronous /synchronous motors |
| Starting torque | 2.0Hz, 150% (sensor-less vector control) 0Hz, 180% (closed-loop
vector control) | 0.5Hz, 180% (sensor-less vector control) 0Hz, 200% (closed-loop
vector control) |
| Speed adjustable range | 1:100 (SVC), 1:1000 (VC) | 1:200 (SVC), 1:1000 (VC) |
| Ambient temperature (no derating required) | -10-40ºC | -10-50ºC (for most of the models) |
| Rated input voltage | 208VAC-400VAC | 208VAC-480VAC |
| Communication | Modbus RTU//ASCII | Modbus RTU//ASCII Profibus-DP, CANopen, etc. |
| Position control (fixed length, or angular positioning) | × | √ |
| Field weakening control | × | √ |
| Autotune online | Online | Online & Offline |
| Short-time ramp-up | Trip | No trip |
| Customized features (software and/or hardware) | Unprocurable or no experience | Procurable with rich experienc |
